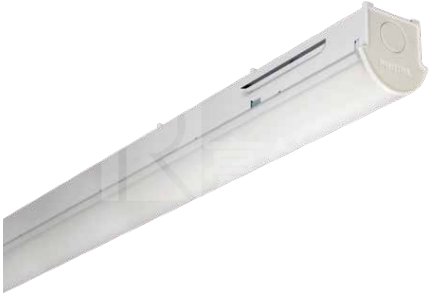

飞利浦BN398C高流明的一体化智能型LED支架灯

Make city life better

让城市生活更美好

2021-10-12

GreenPerform G3

BN398C/208C

飞利浦GreenPerform第三代支架灯BN398C拥有出众的光学设计，效率高达140lm/W，多种配光满足不同应用需求。多种智能互联可选，安装简易灵活，可靠耐用。

产品特点

畅亮节能

效率高达140lm/W，多种配光选择，满足不同应用需求

多种规格可选

3种长度，4种系统输出，4种驱动，2种色温

智能互联

各种智能互联可选DALI，室内定位，PoE

长效可靠

寿命长达5万小时L70 Ta 25°C

灵活应用

吸顶，悬吊，还可导轨式安装（可提供开关导轨或DALI调光导轨）

技术参数

产品型号 (固定输出版)	8700lm		6900lm			4000lm			2000lm
系统功率(W)	68	68	49	55	55	29	29	29	14.2	15.5	15.5
系统输出(lm)	9000	9000	6900	7200	7200	4000	4000	4000	2000	2000	2000
系统效率(lm/w)	132	132	141	131	131	141	141	141	144	132	132
长度	L1500		L1200			L1200			L600
配光 Opal	DA	WB	Opal	DA	WB	Opal	DA	WB	Opal	DA	WB
功率因数	0.9
色温	CW (6500K)；NW (4000K)
串接方式	独立安装
显色指数	>80
色容差	SDCM≤5
IP 防护	IP20
电器等级	一类
输入电压	220-240V，50/60 Hz
出线方式	背后出线
寿命	50,000 小时@L70B50
材质	外壳: 0.6mm冷轧钢板 / 透光罩: PMMA
安装方式	吸顶；悬吊；导轨式

订购信息

项次	灯具型号	适配光源	12NC
GreenPerform Batten
1	BN398C LED40/CW L1200 PSU OP TC	LED	911401587951
2	BN398C LED40/NW L1200 PSU OP TC	LED	911401587851
3	BN398C LED40/CW L1200 PSU OP	LED	911401583551
4	BN398C LED40/NW L1200 PSU OP	LED	911401583451
5	BN398C LED20/NW L600 PSU OP	LED	911401583251
6	BN398C LED20/CW L600 PSU OP	LED	911401583351
7	BN398C LED20/NW L1200 PSU WB	LED	911401501871
8	BN398C LED20/CW L1200 PSU WB	LED	911401501771
9	BN398C LED20/NW L1200 PSU OP	LED	911401501671
10	BN398C LED20/CW L1200 PSU OP	LED	911401501571
11	BN398C LED69/NW L1200 PSU OP	LED	911401583651
12	BN398C LED69/CW L1200 PSU OP	LED	911401583751
13	BN398C LED87/NW L1500 PSU OP	LED	911401583851
14	BN398C LED87/CW L1500 PSU OP	LED	911401583951
15	BN398C LED20/NW L600 PSD OP	LED	911401584051
16	BN398C LED20/CW L600 PSD OP	LED	911401584151
17	BN398C LED40/NW L1200 PSD OP	LED	911401584251
18	BN398C LED40/CW L1200 PSD OP	LED	911401584351
19	BN398C LED69/NW L1200 PSD OP	LED	911401584451
20	BN398C LED69/CW L1200 PSD OP	LED	911401584551
21	BN398C LED87/NW L1500 PSD OP	LED	911401584651
22	BN398C LED87/CW L1500 PSD OP	LED	911401584751
23	BN398C LED20/NW L600 PSU DA	LED	911401584851
24	BN398C LED20/CW L600 PSU DA	LED	911401584951
25	BN398C LED40/NW L1200 PSU DA	LED	911401585051
26	BN398C LED40/CW L1200 PSU DA	LED	911401585151
27	BN398C LED69/NW L1200 PSU DA	LED	911401585251
28	BN398C LED69/CW L1200 PSU DA	LED	911401585351
29	BN398C LED87/NW L1500 PSU DA	LED	911401585451
30	BN398C LED87/CW L1500 PSU DA	LED	911401585551
31	BN398C LED20/NW L600 PSU WB	LED	911401585651
32	BN398C LED20/CW L600 PSU WB	LED	911401585751
33	BN398C LED40/NW L1200 PSU WB	LED	911401585851
34	BN398C LED40/CW L1200 PSU WB	LED	911401585951
35	BN398C LED69/NW L1200 PSU WB	LED	911401586051
36	BN398C LED69/CW L1200 PSU WB	LED	911401586151
37	BN398C LED87/NW L1500 PSU WB	LED	911401586251
38	BN398C LED87/CW L1500 PSU WB	LED	911401586351
39	BN398C LED40/NW L1200 CL OP	LED	911401586451
40	BN398C LED40/CW L1200 CL OP	LED	911401586551
41	BN398C LED69/NW L1200 CL OP	LED	911401586651
42	BN398C LED69/CW L1200 CL OP	LED	911401586751
43	BN398C LED87/NW L1500 CL OP	LED	911401586851
44	BN398C LED87/CW L1500 CL OP	LED	911401586951
45	BN398C LED20/NW L600 POE OP	LED	911401587051
46	BN398C LED20/CW L600 POE OP	LED	911401587151
47	BN398C LED40/NW L1200 POE OP	LED	911401587251
48	BN398C LED40/CW L1200 POE OP	LED	911401587351
49	BN398C LED62/NW L1200 POE OP	LED	911401587451
50	BN398C LED62/CW L1200 POE OP	LED	911401587551
51	BN398C LED20/NW L600 PSU OP TC	LED	911401587651
52	BN398C LED20/CW L600 PSU OP TC	LED	911401587751
53	BN398C LED20/NW L600 PSD OP TC	LED	911401588051
54	BN398C LED20/CW L600 PSD OP TC	LED	911401588151
55	BN398C LED40/NW L1200 PSD OP TC	LED	911401588251
56	BN398C LED40/CW L1200 PSD OP TC	LED	911401588351
57	BN398C LED20/NW L600 PSU DA TC	LED	911401588451
58	BN398C LED20/CW L600 PSU DA TC	LED	911401588551
59	BN398C LED40/NW L1200 PSU DA TC	LED	911401588651
60	BN398C LED40/CW L1200 PSU DA TC	LED	911401588751
61	BN398C LED20/NW L600 PSU WB TC	LED	911401588851
62	BN398C LED20/CW L600 PSU WB TC	LED	911401588951
63	BN398C LED40/NW L1200 PSU WB TC	LED	911401589051
64	BN398C LED40/CW L1200 PSU WB TC	LED	911401589151
65	BN398C LED40/NW L1200 CL OP TC	LED	911401589251
66	BN398C LED40/CW L1200 CL OP TC	LED	911401589351
67	BY398Z CM-S		911401503461
68	BY398Z SPM-S		911401503561
69	BY208Z SP		911401567901
70	DALI TC L1000 WH		911401503961
71	PRO-D631 L		911401503761
72	PRO-0432		911401503661
73	PRO-D634		911401503861
74	BY208Z MB-S		911401567601
75	BY209Z MB-S		911401567801

注: 1.PSU表示固定输出，PSD表示DALI调光版，CL表示CL版，POE表示PoE版

2.TC表示导轨版

3. NW表示4000K，CW表示6500K
